High Voltage Battery Management System: Overcoming Challenges and Designing for the Future

 The rapid adoption of electric vehicles (EVs), renewable energy storage systems, and industrial applications has brought high voltage battery management systems (BMS) into the spotlight. As the backbone of energy storage solutions, a high voltage battery management system ensures the safety, efficiency, and longevity of battery packs, which are often the most critical and expensive components in these applications. With the increasing demand for high-performance energy storage, the design and implementation of a robust BMS have become more challenging and essential than ever.

Press enter or click to view image in full size

A high voltage battery management system is responsible for monitoring and controlling the performance of battery packs, which typically operate at voltages exceeding 400V in EVs and other high-power applications. The primary functions of a BMS include ensuring the safety of the battery pack, optimizing its performance, and extending its lifespan. This is achieved through a combination of hardware and software components that monitor parameters such as voltage, current, temperature, and state of charge (SOC).

For a deeper understanding of the challenges and design considerations in high voltage battery management systems, you can explore this comprehensive guide on high voltage BMS.

One of the most significant challenges in designing a high voltage BMS is ensuring safety. High voltage battery packs are inherently hazardous due to the risk of thermal runaway, which can lead to fires or explosions. A well-designed BMS must include robust safety mechanisms to detect and mitigate potential issues before they escalate. This includes features such as overvoltage and undervoltage protection, overcurrent protection, and thermal management. Advanced BMS designs also incorporate fault detection algorithms that can identify and isolate faulty cells, preventing them from affecting the rest of the battery pack.

Another critical challenge is achieving accurate state estimation. Parameters such as SOC, state of health (SOH), and state of power (SOP) are essential for optimizing battery performance and ensuring reliable operation. However, accurately estimating these parameters is complex, as they depend on various factors, including the battery’s chemistry, operating conditions, and aging characteristics. Modern BMS designs leverage advanced algorithms, such as Kalman filters and machine learning models, to improve the accuracy of state estimation and provide actionable insights for battery management.

Thermal management is another area where high voltage BMS design faces significant challenges. High voltage battery packs generate substantial heat during operation, which can degrade their performance and shorten their lifespan. A BMS must include effective thermal management systems to maintain the battery pack within its optimal temperature range. This may involve active cooling systems, such as liquid cooling, or passive cooling techniques, such as heat sinks and thermal insulation.

The integration of high voltage BMS with other vehicle or system components is also a critical consideration. In EVs, for example, the BMS must communicate seamlessly with the vehicle’s powertrain, charging system, and energy management system. This requires the use of standardized communication protocols, such as CAN or LIN, as well as robust cybersecurity measures to protect against potential threats.

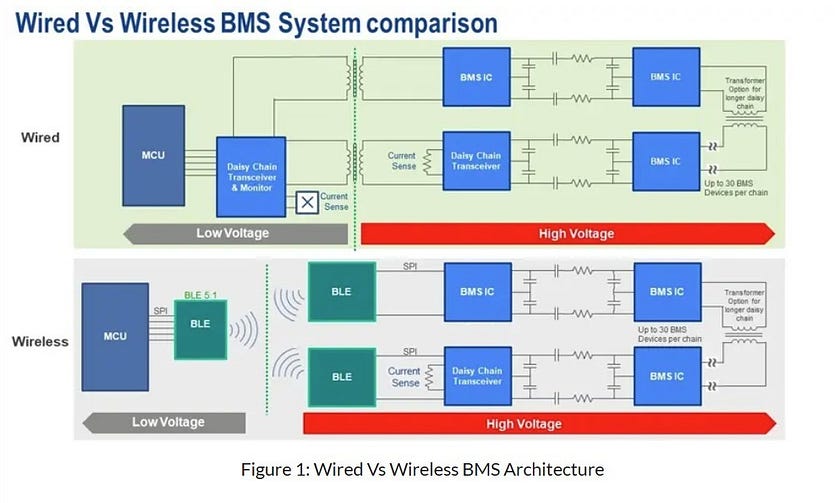

The latest trends in high voltage BMS design are focused on addressing these challenges while enabling new capabilities. One of the most significant trends is the adoption of wireless BMS technology. By eliminating the need for physical wiring between battery cells and the BMS, wireless BMS reduces weight, simplifies assembly, and improves reliability. It also enables greater flexibility in battery pack design, making it easier to scale and adapt to different applications.

Another emerging trend is the use of artificial intelligence (AI) and machine learning in BMS design. AI-powered BMS can analyze vast amounts of data from battery packs to identify patterns and predict potential issues before they occur. This enables predictive maintenance, where potential failures are addressed proactively, reducing downtime and extending the lifespan of the battery pack.

The integration of cloud-based analytics is also gaining traction in high voltage BMS design. By connecting the BMS to the cloud, manufacturers and operators can access real-time data on battery performance and health, enabling remote monitoring and diagnostics. This is particularly valuable in applications such as fleet management, where centralized monitoring can improve operational efficiency and reduce costs.

As a leading provider of engineering and technology solutions, eInfochips is at the forefront of innovation in high voltage battery management systems. With a deep understanding of the challenges and opportunities in this field, eInfochips offers end-to-end BMS design and development services, from hardware and software design to testing and validation.

eInfochips’ expertise in areas such as IoT, AI, and cloud computing enables it to deliver cutting-edge BMS solutions that meet the evolving needs of the industry. Whether it’s developing wireless BMS technology, implementing AI-powered analytics, or ensuring compliance with industry standards, eInfochips is committed to driving innovation and delivering value to its clients.

In conclusion, the high voltage battery management system is a critical component of modern energy storage solutions, enabling the safe, efficient, and reliable operation of battery packs in a wide range of applications. While the design and implementation of a robust BMS come with significant challenges, advancements in technology are paving the way for innovative solutions that address these challenges and unlock new possibilities.

By leveraging the expertise of industry leaders like eInfochips, manufacturers and operators can stay ahead of the curve and deliver high-performance energy storage solutions that meet the demands of the future. Whether you’re developing EVs, renewable energy systems, or industrial applications, a well-designed high voltage BMS is essential for achieving your goals and driving success in the rapidly evolving energy landscape.
